DISPOZITIV ACTIONARE USI GARAJ BGT 63

Door sizes:
- swing-out-doors: max. 2,125 x 3,5 m
- Sectional doors: - max. 2,0 x 3,5 m
- max. 2,5 x 3,5 m with Extension-Set Art.-No. 21.007.05
- Very fast installation system
- The construction made of aluminium press-profiles complies with highest demands regarding resistance to corrosion, stability and saving
in weight.
- The low voltage technique allows a maximum of electrical safety.
- Soft-Start/Soft-Stop
- Extreme low mounting height of only 39 mm required
- Supplied with factory installed code setting
- Transmitter code manipulation protection blocks the manipulation in the receiver part by unauthorized codes.
- Warranty: 2 years

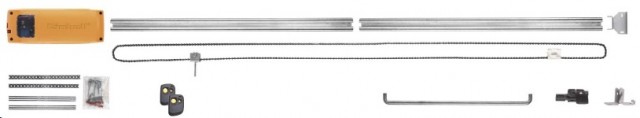

Supplied with:
- Pre-assembled drive unit with integrated microprocessor control
- 2 pieces 6-channel-mini-transmitter HS 434/6 Art.-No. 21.001.95
- Interior Emergency Release
As accessory available:
- 6-channel-mini-transmitter HS 434/6 Art.-No. 21.001.95
- Internal push button switch IT 100 Art.-No. 21.004.00
- Key-lock switch (flush mounted) ST 100 UP Art.-No. 21.002.20
- Key-lock switch (surface mounted) ST 100 AP Art.-No. 21.002.00
- Electronic code lock ECS 12 Art.-No. 21.002.10
- Exterior Emergency release for all types NER 200 Art.-No. 21.005.20
- Extension Set for lamely doors EW S/L 63 Art.-No. 21.007.05 (see illustration)
- Reinforcing plate for all garage doors VB 200 Art.-No. 21.007.60
Technical data:
- Drive unit: Chain drive Weight: 8,7 kg
- Travel range: 2100 mm Packing dimensions: 1220 x 160 x 120 mm
- Pulling force: 600 N (60 kg), integrated fail safe device
- Mains: 230 V~ /50 Hz
- Operating frequency: 434 MHz
